Hexagonal wire mesh is also known as chicken wire, gabion mesh, hexagonal mesh.
Wire material is low carbon steel, stainless steel, zinc 5% aluminum alloy (galfan), iron.
The surface treatment is galvanized, PVC coated or galvanized with PVC coating.
You can get a free sample before purchasing, making your purchase more secure.
Hexagonal wire mesh has hexagonal holes of the same size. Its material is mainly low carbon steel. Depending on the surface treatment, hexagonal wire mesh can be divided into two types: galvanized wire and PVC coated wire. The hexagonal wire diameter of galvanized hexagonal wire mesh is 0.3 mm-2.0 mm, and the wire diameter of PVC coated hexagonal wire mesh is 0.8 mm-2.6 mm. Hexagonal wire mesh has good flexibility and corrosion resistance, and is widely used as gabion mesh for protecting slopes. According to different applications, hexagonal wire mesh can be divided into chicken wire mesh and slope protection mesh (or gabion mesh), with the former having smaller mesh holes. Our hexagonal mesh is widely used in Latin America such as Argentina.
1. Material: galvanized wire, stainless steel wire or PVC coated wire.
2. Weaving method: forward twist and reverse twist (counter twist)
3. Surface treatment: galvanized before weaving, PVC coated Hot-dip galvanized or electro-galvanized.
4. Diameter of galvanized hexagonal wire: 0.3 mm - 2.0 mm.
5. PVC coated hexagonal wire diameter: 0.8 mm - 2.6 mm.
6. Hole diameters (inches): 5/8", 3/4", 1", 1-1/4", 1-1/2" and 2".
7. Wire Gauge: 18 G, 19 G, 20 G, 21 G, 22 G, 23 G, 24 G, 25 G, and 26 G.
8. Widths: Other gauges are available upon request.
9. Mesh application types: chicken wire and slope protection wire.

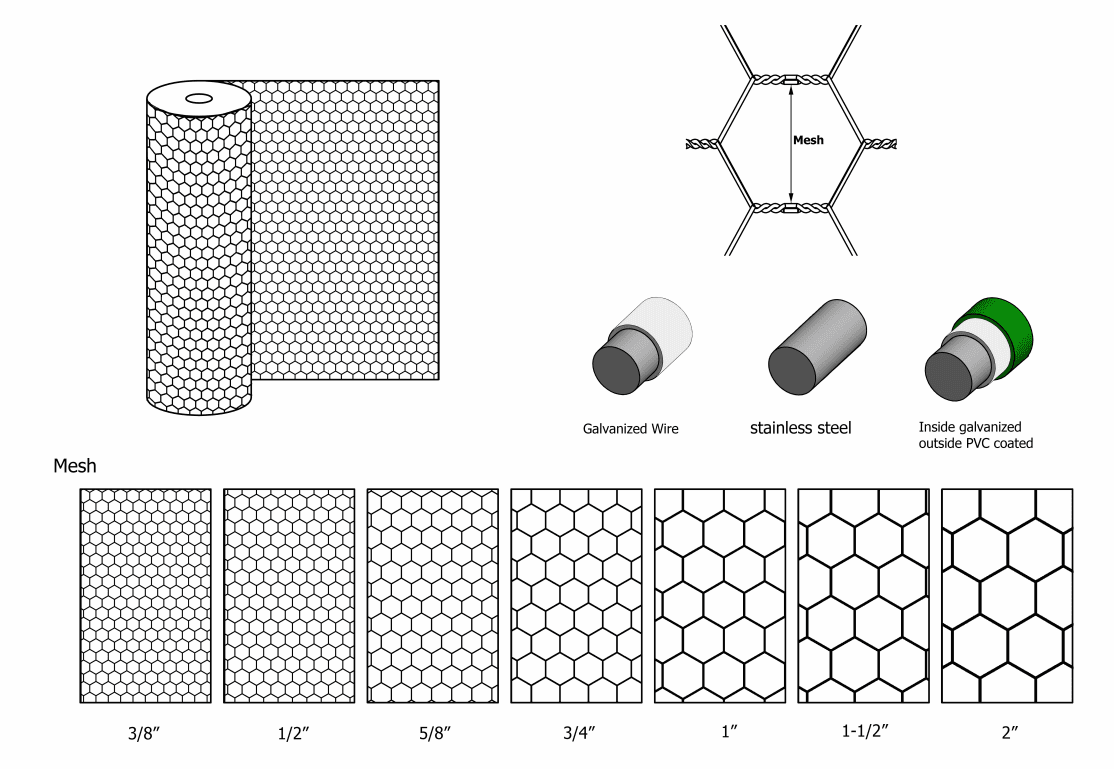

| Hexagonal Wire Mesh | ||
| (In length of 5M, 10M, 25M, 30M, 50M, 100M, TO 3000, width of 0.5M-2.0M) | ||
| MESH | WIRE GAUGE | |
| INCH | MM | (BWG) |
| 3/8" | 10MM | 27, 26, 25, 24, 22, 21 |
| 1/2" | 13MM | 27, 26, 25, 24, 22, 21, 20 |
| 5/8" | 16MM | 27, 26, 25, 24, 22 |
| 3/4" | 20MM | 25, 24, 22, 21, 20, 19 |
| 1" | 25MM | 25, 24, 22, 21, 20, 19, 18 |
| 1-1/4" | 30MM | 22, 21, 20, 19, 18 |
| 1-1/2" | 40MM | 22, 21, 20, 19, 18, 17 |
| 2" | 50MM | 22, 21, 20, 19, 18, 17, 16, 15, 14 |
| 2-1/2" | 65MM | 21, 20, 19, 18 |
| 3" | 75MM | 21, 20, 19, 18, 17, 16, 15, 14 |
| 4" | 100MM | 17, 16, 15, 14 |
If you want to know more details or other products, you are welcome to consult us at any time!
Insulation, fire resistance, and durability; Resistant to corrosion, rust, oxidation and scouring.
Compared with traditional galvanized, galfan hexagonal mesh has good corrosion resistance.
Stable structure, smooth surface, uniform mesh size and high tensile strength.
Uniform mesh size, flat and even mesh surface, tightly woven; Easy to unfold and easy to cut; Easy to transport and install.
Ensures good air circulation and facilitates feeders to feed poultry.
Allow vegetation regeneration into gabion or rockfall mesh.
Flexible all-round and will not fall apart when broken.
Electro-galvanized wire mesh has lower cost and brighter color than hot-dip galvanizing.
Hot-dip galvanized hexagonal wire mesh has better corrosion resistance and oxidation resistance than electro-galvanized.
Hexagonal wire mesh galvanized before weaving has better rust and corrosion resistance than galvanized after weaving.
Galvanized and PVC coated hexagonal wire mesh has longer service life and lower cost.
Hexagonal wire mesh has a wide range of applications in Latin America such as Argentina, such as
Raising poultry or small animals such as chickens, rabbits, ducks, geese and fish. The style can be fences and cages.
Protecting vegetables, flowers or small plants from poultry and small animals.
Fruit cages, defense against rats, birds, cats, dogs, squirrels and foxes.
Interior decoration, window screens, door screens, children's playground fences.
Arts, crafts and sculpture.
Sieves, filters and mold controls.
Fixing plaster, cement to roofs, walls, ceilings, floors or tiles to reinforce them.
Equipment and machinery protection, highway fence, tennis court fence, road green belt protection fence.
Prevent rocks and debris from falling onto roads and railroads.
Used for gabions to control and direct water or flooding, also used as retaining walls and channel liners.
16 gauge galvanized wire 1" mesh open hexagonal mesh for paddle tennis and platform tennis wire.

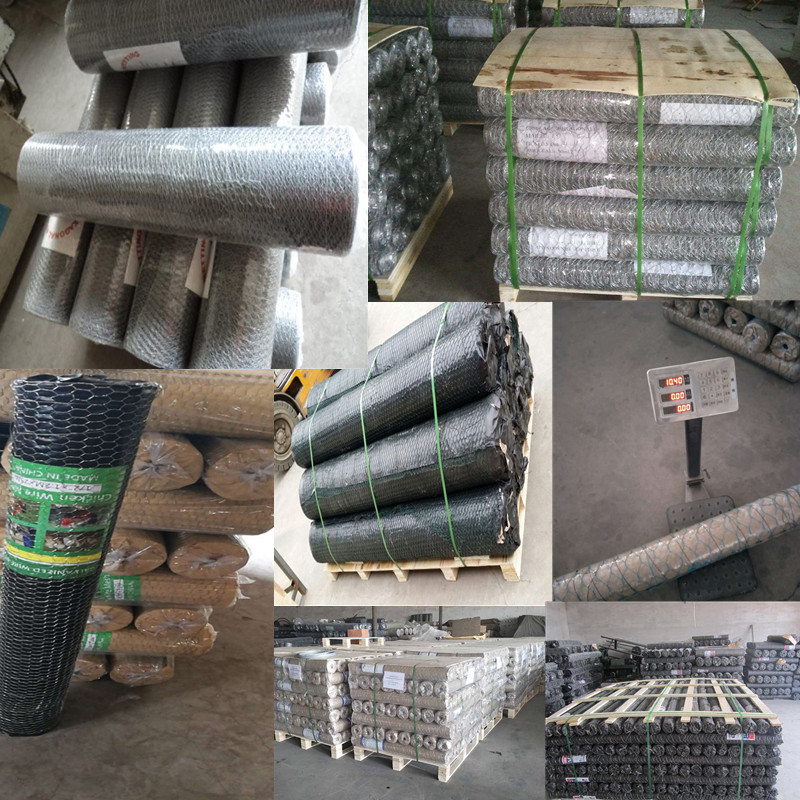

(1) Shrink film+ label
(2) Water-proof paper+ shrink film+ label
(3) Water-proof paper+ shrink film+label, then in card board carton
(4) Water-proof paper+ shrink film+label, then in pallet.
(5) Pack as customers' specific requirements.
Click here to get some free samples to see before you buy, so you can order with more peace of mind.
Welcome customers in Africa and Latin America to ask us any questions!
