How to Install Wire Mesh Netting: Step-by-Step Fencing Installation Guide?

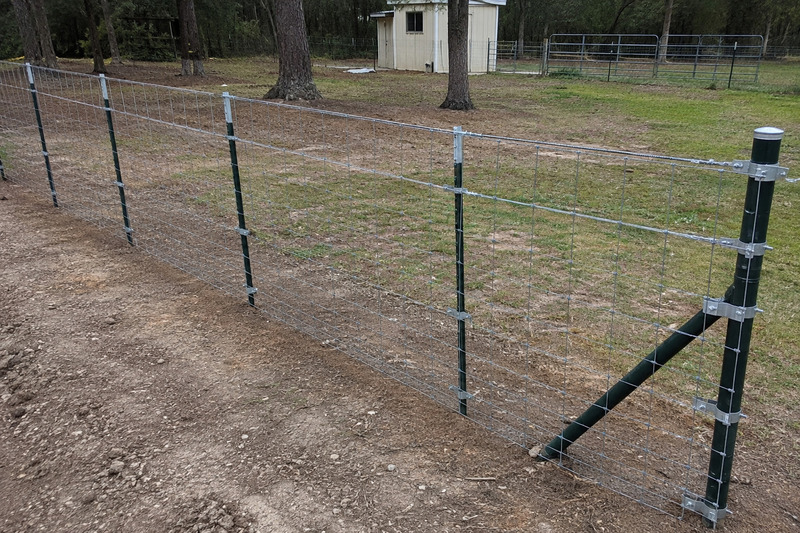

How to attach wire mesh to metal posts?

Proper attachment to metal posts determines your fence's long-term stability. Most installation failures happen at post connections.

The attachment method depends entirely on your mesh type and post design. For welded wire mesh, I use galvanized fence clips because they distribute load evenly and resist corrosion. These clips slide over both the mesh wire and post, creating a mechanical connection that won't slip under tension.

Woven wire mesh requires a different approach. The mesh structure moves more than welded types, so I use 12-gauge galvanized tie wire wrapped through the mesh openings and around the post. This method allows slight movement while maintaining security.

For heavy-duty applications like livestock fencing, I add tension bands at corner and end posts. These wrap completely around the post and connect to the mesh with bolts. The key is matching fastener strength to expected loads.

Always attach mesh to the side facing expected pressure. For animal fencing, this means the mesh goes on the pasture side. For security applications, place mesh on the protected side. This positioning prevents animals or intruders from pushing the mesh away from posts.

How far apart should wire mesh fence posts be?

Post spacing directly affects fence strength and material costs. Wrong spacing leads to sagging mesh or unnecessary expenses.

I've installed fencing in everything from flat farmland to rocky hillsides. Post spacing isn't just about the mesh – it's about your specific conditions. On level ground with minimal wind, 8-foot spacing works well for most welded wire applications. But I learned to adjust this based on real-world factors.

For livestock areas, I reduce spacing to 6 feet where animals gather – near gates, water sources, and feeding areas. Animals create concentrated pressure that standard spacing can't handle. I've seen too many fences fail at these stress points.

Wind load changes everything. In exposed areas, I calculate wind pressure on the mesh surface. A 4-foot high fence with 50 mph winds creates significant force. Reducing post spacing to 6 feet and using larger posts prevents wind damage.

Terrain requires specific adjustments. On slopes steeper than 15 degrees, I use 6-foot spacing regardless of mesh type. Gravity adds downhill force that longer spans can't resist. For rocky or unstable soil, I increase post diameter and reduce spacing to compensate for reduced holding power.

Different mesh types have different structural properties:

Remember that corner posts, end posts, and gate posts need special treatment. These carry concentrated loads from multiple fence sections. I always use larger posts and concrete footings at these locations, regardless of line post spacing.

How to attach wire mesh together?

Connecting mesh sections creates continuous fencing without weak joints. Poor connections become failure points under stress.

Connecting mesh sections properly takes patience and the right tools. I use different methods based on the mesh construction and expected loads. The goal is creating joints as strong as the original mesh.

For welded wire mesh, I prefer galvanized C-rings applied with hog ring pliers. These create mechanical connections that won't loosen over time. I place rings every 6 inches along the joint, catching both mesh sections in each ring. The rings should close completely but not over-compress the wire.

Woven wire mesh needs lacing wire for proper connections. I use 12-gauge galvanized wire, weaving it through the mesh pattern to match the original weave. This maintains the mesh's flexibility while creating a strong joint. The lacing wire should follow the same path as the original wires.

Chain link requires special connecting hardware. I use tension sleeves on the top rail and tie wire connections on the mesh itself. The tension sleeves maintain proper mesh alignment while tie wires handle lateral forces.

For temporary connections or repairs, I use galvanized tie wire. This works for any mesh type but requires more time. I wrap the tie wire through mesh openings, twist it tight with pliers, and cut excess length. Each connection point needs at least three wraps for security.

Always overlap mesh sections by at least one full mesh opening. This provides adequate connection area and prevents gaps. For critical applications, I use double the normal connection density at joints.

How to secure wire mesh to fence?

Proper securing prevents mesh movement and maintains fence integrity. Loose mesh defeats the fence's purpose.

Securing mesh goes beyond just attaching it to posts. I learned this when our first installation developed waves and sags despite proper post spacing. The mesh needs support along its entire length to maintain shape and function.

Tension wire provides continuous support along the mesh length. I install 12-gauge galvanized wire along the top edge of all mesh installations. This wire runs through the mesh pattern and connects to each post with proper tensioning hardware. The tension wire carries horizontal loads and prevents mesh distortion.

For mesh over 4 feet high, I add a second tension wire at mid-height. This prevents the center section from sagging between posts. The mid-height wire doesn't need as much tension as the top wire but provides crucial support.

Bottom edge security prevents animals from pushing under the mesh. I use different methods based on the application. For livestock, I bury the bottom edge 6 inches deep and backfill with compacted soil. For garden protection, landscape staples every 3 feet hold the bottom edge down.

Ground conditions affect bottom securing methods. In soft soil, I use longer ground anchors or concrete the bottom edge. Rocky soil requires drilling and mechanical anchors. Sandy soil needs deeper burial or continuous bottom rails.

Regular maintenance keeps the fence secure over time. I check tension annually and retension as needed. Wire stretches over time, and posts can shift slightly. Catching these changes early prevents major repairs later.

The securing system must work with your specific mesh type:

Weather affects mesh security over time. Wind creates fatigue in connections, while temperature changes cause expansion and contraction. I design the securing system to handle these forces without failure.
