Wire Mesh Netting for Mining & Industrial Screening: Sizing & Durability Requirements?

What Is Wire Mesh Used for in Mining and Industrial Screening?

Mining companies face constant pressure to separate materials efficiently. Screen failures cost thousands in lost production time.

Wire mesh serves as the heart of screening equipment across mining operations. In coal preparation plants, screens separate coal from refuse materials. Aggregate operations use mesh to sort gravel and sand by size. Mineral processing facilities rely on screens to classify ores and concentrates.

The mesh acts as a barrier that allows smaller particles to pass through while retaining larger materials. This separation process is critical for product quality and downstream processing efficiency. Different mining applications require specific mesh characteristics to handle varying material types, flow rates, and environmental conditions.

Which Wire Mesh Is Best for Mining Screens?

Different mining applications create unique challenges for screen mesh. Wrong material choices lead to rapid wear and frequent replacements.

High-carbon steel mesh dominates mining applications because it provides excellent tensile strength at reasonable cost. The carbon content increases hardness and wear resistance compared to mild steel. This material handles the impact and abrasion from heavy materials like coal, ore, and aggregate.

Stainless steel mesh becomes necessary when dealing with corrosive materials or wet processing environments. The chromium content prevents rust and extends service life in challenging conditions. However, stainless steel costs significantly more than carbon steel.

Specialized wear-resistant alloys offer superior durability for the most demanding applications. These materials contain elements like manganese or chromium that increase hardness and impact resistance. The higher cost is justified when screen replacement frequency becomes a major operational concern.

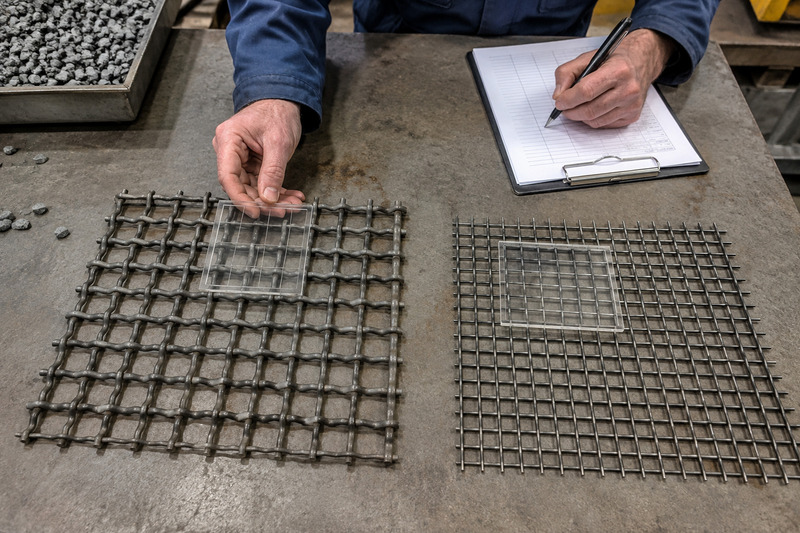

How Do You Choose the Right Mesh Aperture for Screening?

Aperture selection directly impacts screening efficiency and product quality. Too large allows oversized material through, too small reduces capacity.

The aperture size determines what materials pass through the screen. A fundamental rule is that round particles need openings about 1.2 times their diameter, while angular materials require larger openings due to their irregular shape.

Material flow rate affects aperture selection. Smaller openings provide better separation accuracy but reduce throughput capacity. Larger openings increase capacity but may allow some oversized particles to pass through. The optimal balance depends on your specific quality requirements and production targets.

Consider the moisture content of your materials. Wet materials tend to stick together and require larger apertures than dry materials of the same size. Clay content also affects screening behavior, as clay particles can blind smaller openings.

How Does Wire Diameter Affect Screen Strength and Service Life?

Wire diameter determines the structural integrity of your screen mesh. Thin wires break under heavy loads while thick wires reduce open area.

Thicker wires handle higher loads and resist breaking under impact from heavy materials. The increased cross-sectional area provides more material to absorb stress and distribute loads across the mesh structure. This becomes critical when screening large, heavy materials or when screens experience high vibration forces.

However, thicker wires reduce the open area available for material passage. Less open area means reduced screening capacity and potentially lower efficiency. The challenge is finding the optimal wire diameter that provides adequate strength without severely limiting throughput.

Wire diameter also affects the mesh's flexibility. Thinner wires allow more movement, which can help prevent blinding but may lead to fatigue failures over time. Thicker wires provide stability but create a more rigid structure that may be prone to stress concentrations.

The relationship between wire diameter and aperture size is crucial. A general guideline is that wire diameter should be 15-25% of the aperture size for balanced performance. This ratio ensures adequate strength while maintaining reasonable open area.

Why Does Open Area Matter for Screening Efficiency?

Open area directly controls how much material can pass through your screen. Insufficient open area creates bottlenecks and reduces plant capacity.

Open area represents the percentage of screen surface available for material passage. Higher open area allows more material to flow through, increasing screening capacity and reducing the likelihood of screen blinding. Blinding occurs when particles become lodged in the openings, effectively reducing the screen's active area.

The relationship between wire diameter and open area is inverse. Thicker wires reduce open area while thinner wires increase it. This creates a design challenge where you must balance structural strength against screening efficiency.

Different weave patterns affect open area percentages. Square mesh typically provides higher open area than rectangular patterns. Welded mesh can achieve very high open area percentages because the intersections are smaller than in woven mesh.

Material characteristics influence the required open area. Sticky or wet materials need higher open area to prevent blinding. Free-flowing dry materials can work effectively with lower open area percentages.

Which Wire Mesh Material Offers the Best Wear and Corrosion Resistance?

Material selection determines how long your screens will last in harsh mining environments. Poor material choices lead to premature failures and increased costs.

Corrosion resistance becomes critical in wet processing environments or when handling acidic materials. Stainless steel grades 304 and 316 offer excellent corrosion resistance, with 316 providing superior performance in chloride environments. The molybdenum content in 316 stainless steel enhances its resistance to pitting and crevice corrosion.

Wear resistance is equally important when handling abrasive materials like sand, gravel, or crushed ore. High-carbon steel provides excellent wear resistance due to its increased hardness. The carbon content can range from 0.6% to 1.0%, with higher carbon levels providing greater wear resistance but potentially reducing ductility.

Specialized alloys offer enhanced properties for extreme conditions. Manganese steel provides exceptional work-hardening characteristics, becoming harder as it experiences impact. Chromium-containing alloys offer both wear and corrosion resistance but at higher cost.

Surface treatments can enhance material performance. Galvanizing provides corrosion protection for carbon steel at lower cost than stainless steel. Heat treatment can optimize the hardness and toughness balance in carbon steel mesh.

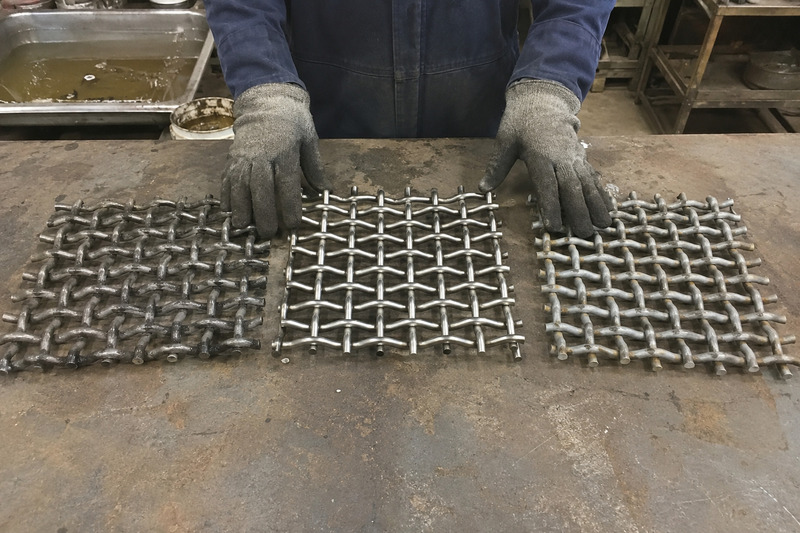

Woven vs Welded Wire Mesh: Which Is Better for Industrial Screening?

Construction method affects screen performance and durability. Each type offers distinct advantages for different applications.

Woven mesh construction allows individual wires to move slightly under load, providing flexibility that helps absorb impact forces. This flexibility reduces stress concentrations and can extend service life in high-impact applications. The weaving process also creates mechanical locks at wire intersections that resist wire pullout.

Welded mesh features wires joined at every intersection through electric resistance welding. This creates a more rigid structure with precise, consistent openings. The welding process allows for higher open area percentages because the intersection points are smaller than in woven mesh.

Welded mesh excels in applications requiring precise sizing because the apertures maintain their shape better under load. The rigid structure prevents opening distortion that can occur with woven mesh over time. However, this rigidity can make welded mesh more susceptible to fatigue failures in high-vibration applications.

Manufacturing considerations affect cost and availability. Woven mesh can be produced in wider widths and longer lengths than welded mesh. Welded mesh production is limited by welding equipment capacity but offers more precise dimensional control.

What Causes Mining Screen Mesh to Wear or Fail Prematurely?

Understanding failure modes helps prevent costly downtime and extend screen life. Most failures are preventable with proper design and maintenance.

Wire fatigue represents the most common failure mode in vibrating screens. Repeated stress cycles cause microscopic cracks that grow over time until the wire breaks. This typically occurs near wire intersections where stress concentrations are highest. High-frequency vibration accelerates fatigue failure, especially in screens operating above their design limits.

Abrasive wear gradually reduces wire diameter until the mesh loses structural integrity. Sharp, angular materials like crushed stone create more wear than rounded materials. The wear rate depends on material hardness, particle size, and flow velocity across the screen surface.

Impact damage occurs when large, heavy materials strike the mesh with sufficient force to cause immediate wire breakage. This often happens when oversized materials enter the screening system or when screen support is inadequate. Proper scalping ahead of fine screens can prevent most impact damage.

Corrosion attacks wire surfaces, reducing cross-sectional area and creating stress concentration points. Wet processing environments, acidic materials, and salt exposure accelerate corrosion. Stainless steel or protective coatings can prevent corrosion-related failures.

Blinding reduces screening efficiency and increases stress on the mesh structure. Sticky materials, moisture, and undersized support openings contribute to blinding problems.

How Can You Extend the Service Life of Mining Screen Mesh?

Proper installation and maintenance practices significantly impact screen longevity. Small investments in care pay large dividends in extended service life.

Proper installation forms the foundation for long screen life. The mesh must be tensioned correctly during installation - too loose allows excessive movement and fatigue, while too tight creates stress concentrations. Support spacing should match the mesh specifications to prevent sagging between supports.

Regular cleaning prevents blinding and reduces stress on the mesh structure. Water sprays, air blasts, or mechanical cleaning systems can remove stuck particles. The cleaning method should match the material characteristics and environmental conditions.

Flow optimization reduces unnecessary stress on the mesh. Proper feed distribution prevents localized overloading that can cause premature wear or breakage. Feed rate control ensures the screen operates within its design capacity.

Support structure maintenance is often overlooked but critical for screen life. Worn or damaged support bars create stress concentrations in the mesh. Regular inspection and replacement of support components prevents mesh damage.

Environmental protection extends screen life in corrosive conditions. Covers or enclosures can protect screens from weather exposure. Proper drainage prevents standing water that accelerates corrosion.

What Specifications Should You Provide When Ordering Mining Screen Mesh?

Complete specifications ensure you receive mesh that meets your exact requirements. Missing details often result in unsuitable products and delays.

Aperture dimensions must include both size and tolerance requirements. Square openings require only one dimension, while rectangular openings need both length and width. Specify whether measurements are taken between wire centers or clear opening dimensions.

Wire diameter specifications should include tolerance limits. Standard tolerances are typically ±5% for most applications, but critical applications may require tighter control. Material grade specifications must include specific standards like ASTM or EN grades rather than general descriptions.

Overall mesh dimensions include length, width, and any special cutting requirements. Edge preparation specifications cover whether edges should be welded, bound, or left as cut. Some applications require special edge treatments to prevent unraveling or provide mounting points.

Application details help suppliers recommend optimal specifications. Include information about material being screened, operating environment, expected service life, and any special requirements like food grade certification or explosion-proof construction.

Testing requirements should be specified if needed. This might include tensile strength testing, aperture verification, or material certification. Specify which standards apply and what documentation is required.

How Do You Choose a Reliable Mining Sieve Mesh Supplier?

Supplier selection impacts product quality, delivery reliability, and long-term support. Poor supplier choices create ongoing operational problems.

Manufacturing capability assessment should include facility inspection, equipment evaluation, and quality system review. Look for suppliers with modern equipment, adequate capacity, and documented quality procedures. ISO 9001 certification indicates established quality management systems.

Technical expertise becomes critical for complex applications. Suppliers should provide engineering support for mesh selection, application analysis, and problem-solving. Experience with similar applications demonstrates understanding of your requirements.

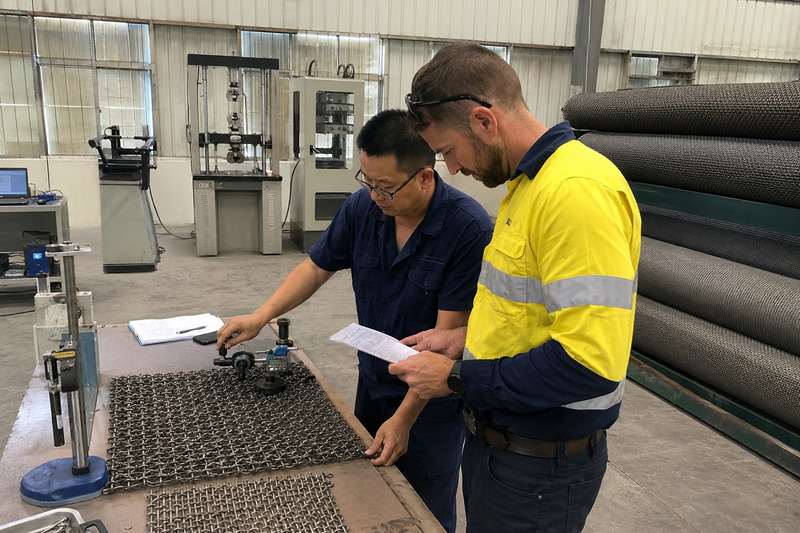

Testing capabilities ensure product quality and consistency. Suppliers should have facilities for tensile testing, aperture measurement, and material verification. Third-party testing capabilities provide additional assurance for critical applications.

Supply chain reliability affects your operational continuity. Evaluate the supplier's raw material sources, inventory levels, and delivery performance. Multiple supply sources provide backup options during disruptions.

After-sales support includes technical assistance, warranty coverage, and replacement part availability. Responsive support helps resolve issues quickly and minimize downtime.

At Dingzhou Bestar, we have supplied mining screen mesh to operations across Africa, the Middle East, and South America for over a decade. Our dual manufacturing facilities in China and Ethiopia provide supply security and trade advantages. We maintain extensive quality testing capabilities and provide technical support throughout the product lifecycle.

Conclusion
