What Are the Standard Specifications for Hexagonal Wire Mesh?

You need the right specs for your hexagonal wire mesh project. Wrong measurements mean wasted money and failed installations.

Hexagonal wire mesh specifications include wire gauge (16-22 BWG), mesh opening sizes (13mm-50mm), and standard roll dimensions (1m-2m width, 25m-100m length). These specs determine strength, application suitability, and cost-effectiveness for your specific project needs.

hexagonal wire mesh specifications chart

Getting the right specifications matters more than you think. I have seen too many projects fail because someone picked the wrong gauge or mesh size. This guide will help you understand every specification that matters.

What is 20 gauge hexagonal wire mesh?

You see 20 gauge wire everywhere in poultry applications. But what does this number actually mean for your project?

20 gauge hexagonal wire mesh uses wire with 0.9mm diameter (BWG standard). This gauge provides medium strength suitable for chicken coops, rabbit hutches, and light garden fencing applications.

Twenty gauge wire sits in the middle range of hexagonal mesh options. The wire diameter of 0.9mm gives you enough strength for most small animal enclosures without being too heavy or expensive.

I often recommend 20 gauge for customers who need reliable protection but want to keep costs reasonable. The wire is thick enough to resist rust and maintain shape over time. Yet it remains flexible enough for easy installation around posts and corners.

Here are the key specifications for 20 gauge hexagonal mesh:

Specification	Value	Application
Wire Diameter	0.9mm	Medium duty
Tensile Strength	350-400 N/mm²	Standard use
Zinc Coating	40-60g/m²	Basic protection
Flexibility	Medium	Easy handling

The strength of 20 gauge wire works well for containing chickens, rabbits, and small goats. It will not work for larger animals like sheep or cattle. These need heavier gauge wire for safety.

Many customers choose 20 gauge because it balances cost and performance. The wire costs less than 16 or 18 gauge options. But it still provides reliable service for years when properly installed and maintained.

What is the standard size of chicken wire mesh?

Chicken wire comes in specific mesh sizes that work best for poultry. You need to know these standards to make the right choice.

Standard chicken wire mesh opening is 25mm (1 inch) hexagonal pattern. This size prevents chickens from escaping while allowing good ventilation and visibility through the fence.

The 25mm opening size became standard because it works perfectly for adult chickens. Chickens cannot squeeze through this opening. But air flows freely for proper ventilation in coops and runs.

I have tested different mesh sizes over the years. Smaller openings like 13mm or 19mm cost more and reduce airflow. Larger openings like 38mm or 50mm let chickens escape or allow predators to reach through.

Common chicken wire specifications include:

Mesh Opening	Wire Gauge	Best Use
25mm (1”)	20 BWG	Adult chickens
19mm (3/4”)	22 BWG	Young chickens
13mm (1/2”)	22 BWG	Chicks, small birds
38mm (1.5”)	18 BWG	Large poultry only

Most chicken wire rolls come in standard widths of 1m, 1.2m, 1.5m, and 2m. Length options typically range from 25m to 100m per roll. These dimensions work well for most poultry installations.

The galvanized coating on chicken wire varies by quality level. Basic coating provides 40g/m² of zinc. Heavy duty coating offers 60-80g/m² for longer life in wet conditions. Choose based on your local climate and expected service life.

BWG vs mm: how to convert wire gauge?

Wire gauge systems confuse many people. You need to understand BWG measurements to get the right wire thickness.

BWG (Birmingham Wire Gauge) uses numbers that decrease as wire gets thicker. 16 BWG = 1.6mm, 18 BWG = 1.2mm, 20 BWG = 0.9mm, 22 BWG = 0.7mm diameter.

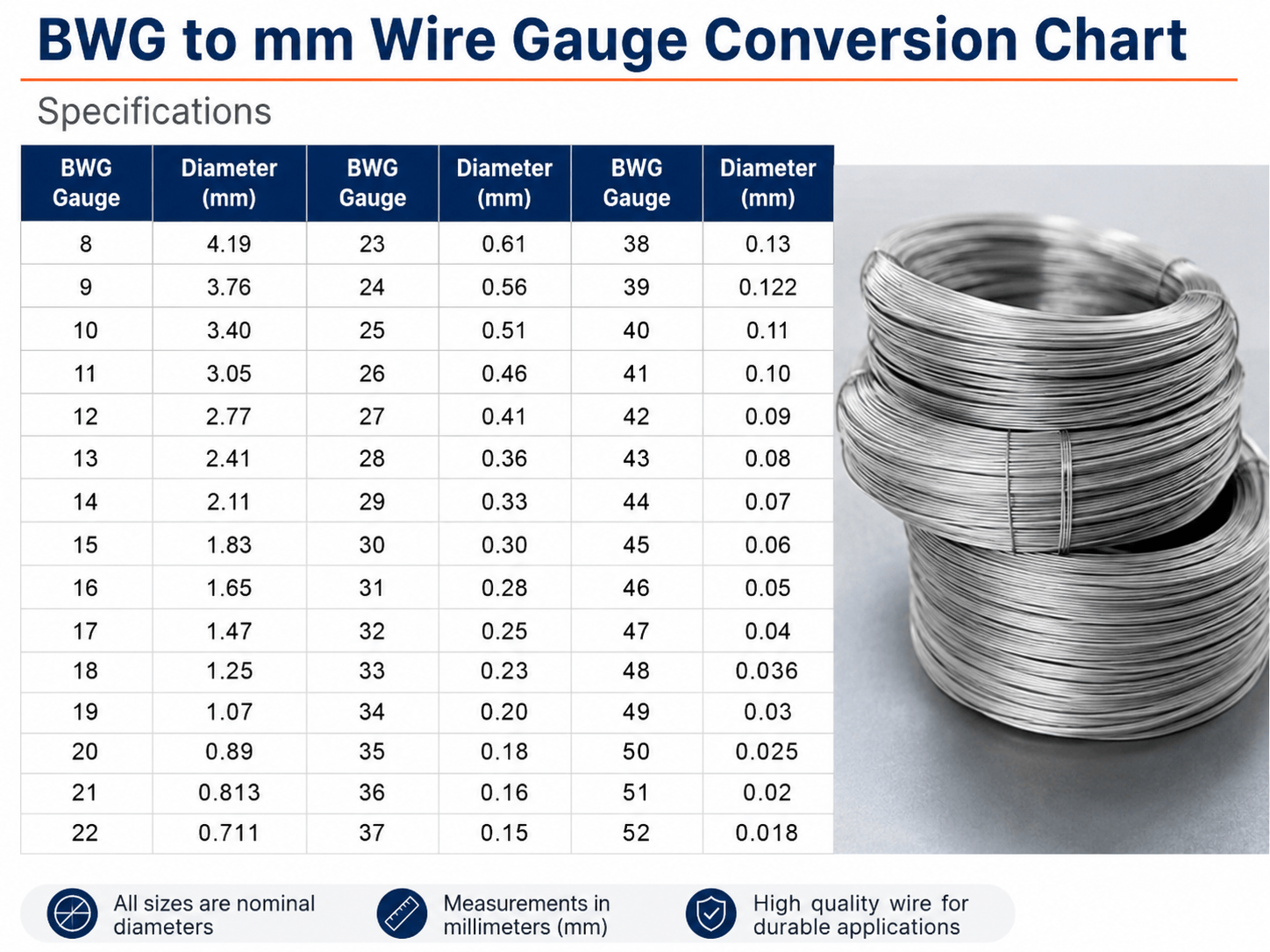

BWG to mm wire gauge conversion chart

The BWG system started in Birmingham, England during the industrial revolution. Higher gauge numbers mean thinner wire. This seems backwards but became the standard for wire mesh manufacturing.

I keep this conversion chart handy because customers often mix up the systems. American customers usually know BWG numbers. European customers prefer millimeter measurements. Both refer to the same wire thickness.

Here is the complete BWG to mm conversion for hexagonal mesh:

BWG Gauge	Diameter (mm)	Diameter (inches)	Common Use
14 BWG	2.0mm	0.080”	Heavy duty fence
16 BWG	1.6mm	0.065”	Farm fencing
18 BWG	1.2mm	0.048”	Garden fence
20 BWG	0.9mm	0.035”	Chicken wire
22 BWG	0.7mm	0.028”	Light applications
24 BWG	0.5mm	0.020”	Craft projects

Thicker wire costs more but lasts longer and provides better security. Thinner wire saves money upfront but may need replacement sooner. Choose based on your specific needs and budget.

The gauge also affects how easy the mesh is to cut and install. Thicker gauges need heavy duty wire cutters. Thinner gauges can be cut with standard tools but may not hold their shape as well.

What mesh size is best for poultry fencing?

Different poultry types need different mesh sizes for safety and security. The wrong size creates problems you want to avoid.

For chickens use 25mm mesh, for ducks use 25-38mm mesh, for turkeys use 38-50mm mesh, and for chicks use 13-19mm mesh. Match the opening size to prevent escape while allowing proper airflow.

poultry fencing mesh size selection guide

I learned about proper mesh sizing through trial and error on my own farm projects. Too small wastes money and blocks airflow. Too large lets animals escape or predators get in.

The size of your birds determines the mesh opening you need. Young birds require smaller openings than adults. Mixed flocks need the smallest size to contain all birds safely.

Here are my recommended mesh sizes by bird type and age:

Bird Type	Age	Mesh Opening	Wire Gauge	Reason
Chickens	Adult	25mm (1”)	20 BWG	Standard size
Chickens	Chicks	13mm (1/2”)	22 BWG	Prevents escape
Ducks	Adult	38mm (1.5”)	18 BWG	Larger birds
Turkeys	Adult	50mm (2”)	16 BWG	Heavy birds
Quail	Adult	13mm (1/2”)	22 BWG	Small birds
Guinea Fowl	Adult	25mm (1”)	20 BWG	Active birds

Predator protection also influences mesh size choice. Smaller predators like weasels can fit through larger openings. Snakes can squeeze through surprisingly small spaces. Consider your local predator threats when selecting mesh size.

Climate affects mesh choice too. Hot climates need larger openings for better airflow. Cold climates can use smaller openings since ventilation matters less. Balance security needs with environmental requirements for best results.

What roll size is commonly exported to the Middle East?

Middle Eastern markets have specific preferences for roll dimensions. Understanding these helps you order the right quantities.

Common export sizes to Middle East are 1m x 25m and 1.5m x 50m rolls in 20-22 BWG wire. These dimensions match local installation practices and transportation requirements.

Middle East hexagonal wire mesh roll specifications

I have worked with Middle Eastern distributors for several years now. They prefer specific roll sizes that work well with their installation methods and storage capabilities.

The hot climate in Middle Eastern countries affects wire mesh performance. Galvanized coating must be heavy enough to resist corrosion from salt air near coasts. Interior areas need protection from sand and temperature extremes.

Popular Middle East specifications include:

Width	Length	Wire Gauge	Mesh Size	Application
1m	25m	22 BWG	25mm	Residential
1m	50m	20 BWG	25mm	Small farms
1.5m	25m	20 BWG	38mm	Commercial
1.5m	50m	18 BWG	38mm	Large projects
2m	25m	18 BWG	50mm	Industrial

Packaging for Middle East export requires extra protection from moisture during sea transport. We use plastic wrapping and desiccant packs to prevent rust formation. Wooden pallets work better than metal ones in the humid shipping environment.

Transportation costs favor certain roll dimensions over others. Longer rolls reduce the number of joints needed during installation. But very long rolls become difficult to handle on construction sites. The 25m and 50m lengths provide good balance.

ASTM standards for hexagonal wire mesh?

ASTM standards ensure consistent quality and performance across different manufacturers. You should know these standards when specifying mesh.

ASTM A116 covers hexagonal wire mesh specifications including wire gauge tolerance (±5%), mesh opening accuracy (±10%), and galvanizing requirements (minimum 40g/m² zinc coating).

ASTM standards for hexagonal wire mesh quality

ASTM standards help buyers compare products from different suppliers on equal terms. Without standards, each manufacturer could use different measurement methods or quality levels.

The main ASTM standard for hexagonal wire mesh is A116. This covers manufacturing tolerances, material requirements, and testing methods. Following these standards ensures consistent product quality.

Key ASTM A116 requirements include:

Parameter	Tolerance	Test Method	Significance
Wire Diameter	±5%	Micrometer	Strength consistency
Mesh Opening	±10%	Grid template	Size accuracy
Zinc Coating	Min 40g/m²	Weight test	Corrosion protection
Tensile Strength	Min 350 N/mm²	Pull test	Wire quality
Twist Uniformity	Visual inspection	Hand check	Manufacturing quality

Other relevant standards include ASTM A641 for zinc coating and ASTM A90 for coating weight testing. These work together to ensure complete product compliance.

I always specify ASTM compliance when ordering large quantities. This gives me confidence that the mesh will perform as expected. It also provides recourse if products do not meet specifications.

Quality manufacturers test every production lot against ASTM standards. They provide certificates showing actual test results versus required minimums. This documentation helps with project approvals and insurance requirements.

Conclusion

Choose hexagonal wire mesh specifications based on your specific application needs, considering wire gauge, mesh opening size, and roll dimensions for optimal performance and cost-effectiveness.

Need production-ready specifications?

Use this guide to align gauge, mesh size, roll size, zinc coating, and application requirements before requesting quotations or production samples.
