Galvanized vs PVC Coated Hexagonal Wire Mesh: Which Is Better for Your Project?

Choosing the wrong wire mesh can cost you thousands in replacements and repairs. You need mesh that survives your specific environment without breaking your budget.

Galvanized vs PVC Coated Wire Mesh Comparison

I've worked with mesh suppliers for over a decade, and I've seen projects fail because of poor material selection. The right choice between galvanized and PVC coated mesh can make or break your investment. Let me walk you through everything you need to know.

Is PVC Coated Wire Mesh Better Than Galvanized?

PVC coating transforms ordinary galvanized mesh into a corrosion-fighting champion. The plastic layer blocks moisture and chemicals from reaching the steel core.

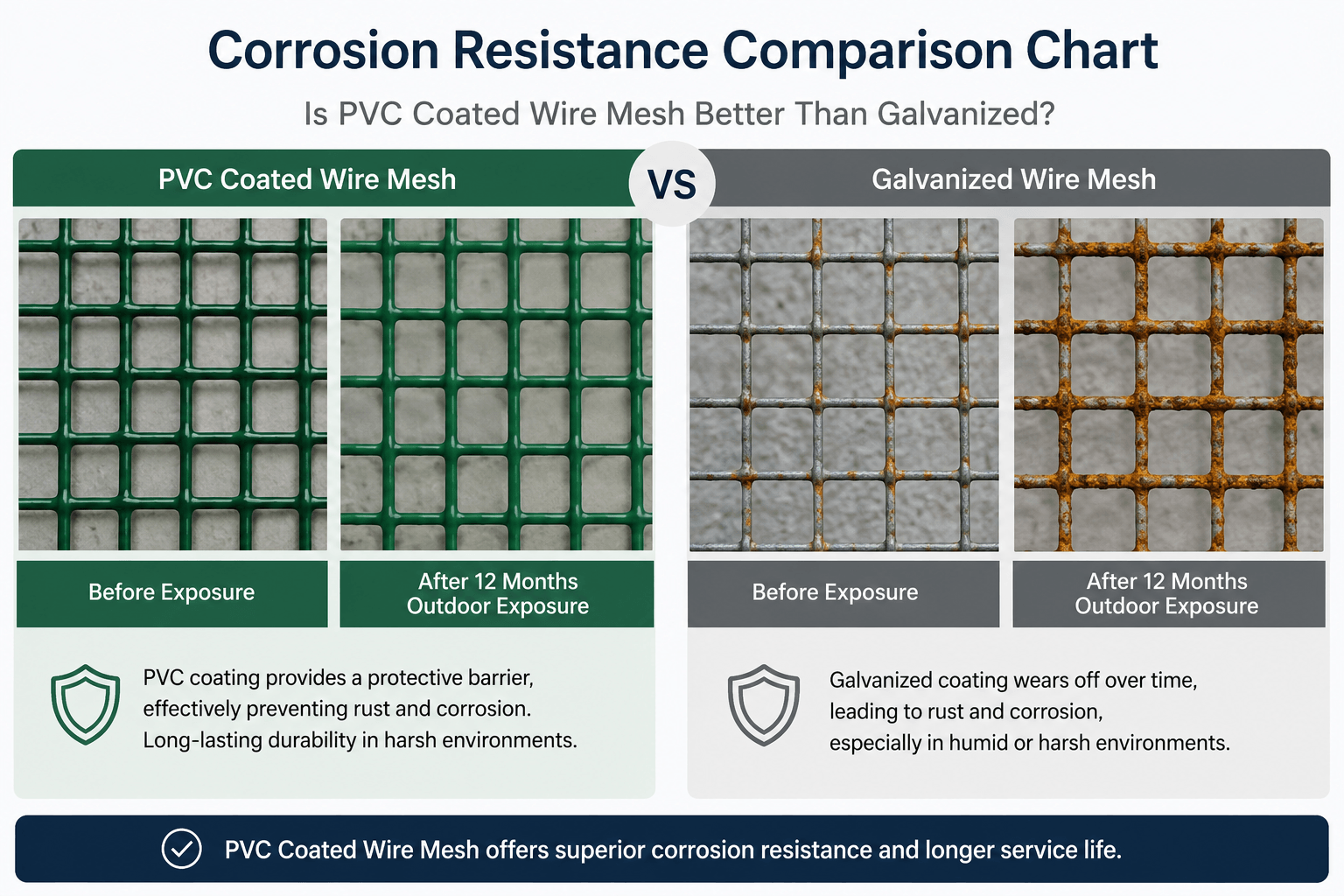

Corrosion Resistance Comparison Chart

The PVC coating acts like a waterproof jacket for your mesh. I've seen galvanized chicken wire fail within 3-5 years in coastal areas, while PVC coated versions lasted 15+ years in the same conditions. The coating typically ranges from 0.5mm to 1.0mm thick, with thicker coatings providing better protection.

PVC coated wire mesh comes in various colors, with green being most popular for landscaping and agriculture. The coating also reduces noise when wind passes through the mesh. However, if the PVC gets damaged and exposes the steel core, rust can still develop at those points.

Which Wire Mesh Is Best for Coastal Areas?

Salt air destroys unprotected metal faster than you might expect. Coastal environments demand special consideration for any outdoor wire mesh application.

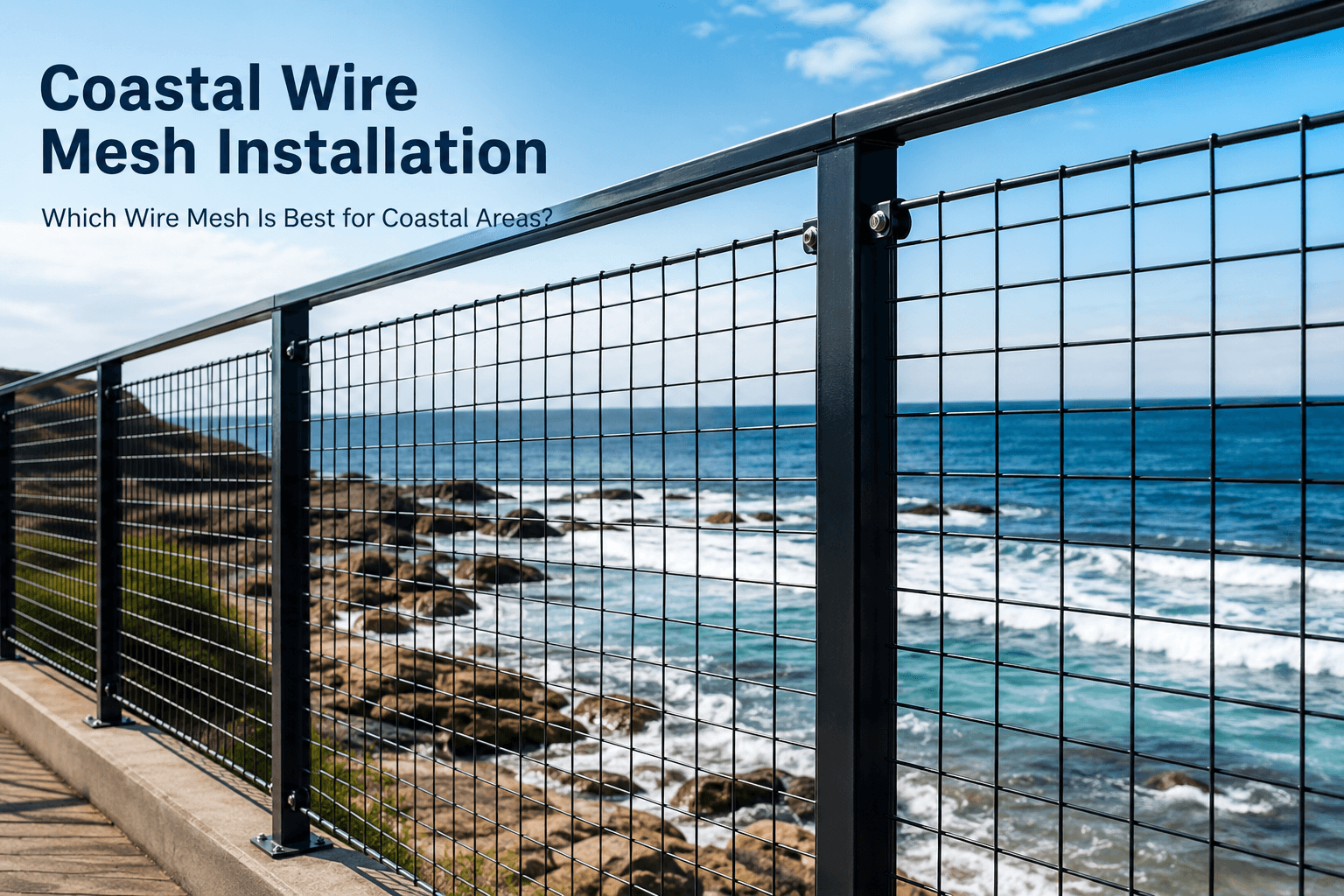

Coastal Wire Mesh Installation

I've consulted on projects from California beaches to Florida wetlands. The salt concentration in coastal air can be 10 times higher than inland areas. This creates an aggressive environment that quickly penetrates galvanized coatings through microscopic pores.

Marine environment wire mesh must resist both salt spray and high humidity. PVC coated mesh creates a complete barrier against these elements. The coating remains flexible in temperature changes, preventing cracking that would expose the steel underneath.

For heavy duty hexagonal mesh in coastal applications, look for hot-dipped galvanized steel core with thick PVC coating. This combination provides the best structural strength and corrosion protection. Some manufacturers offer marine-grade PVC formulations with UV stabilizers for extended outdoor exposure.

How Long Does PVC Coated Chicken Wire Last?

Durability determines the true value of any mesh investment. PVC coated chicken wire lifespan varies significantly based on coating quality and environmental conditions.

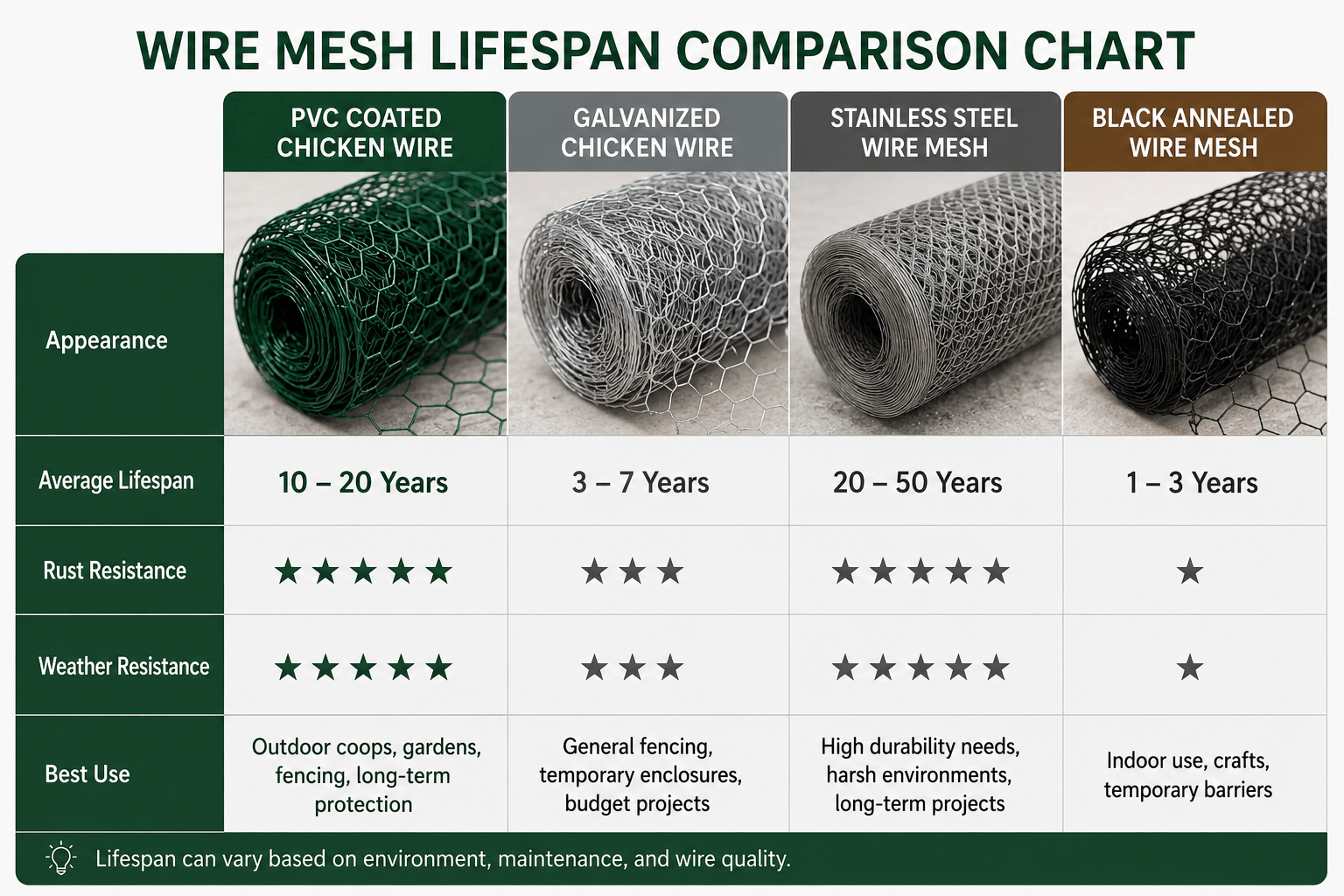

Wire Mesh Lifespan Comparison Chart

The coating thickness makes a huge difference in longevity. I've tracked installations using different coating grades over the years. Thin PVC coatings start showing wear around year 8-10, with small cracks appearing where the mesh flexes frequently.

Thicker coatings maintain integrity much longer. The extra plastic provides cushioning against impacts and better resistance to UV degradation. Green PVC coated chicken wire tends to last longer than other colors because green pigments often include better UV stabilizers.

Installation method affects durability too. Proper tensioning prevents excessive flexing that can crack the coating. Using appropriate fasteners and avoiding sharp contact points helps maintain the protective barrier.

What Is the Difference Between Hot Dipped and Electro Galvanized Mesh?

The galvanizing process determines how long your mesh will last before the PVC coating becomes critical. Understanding these differences helps you choose the right base material.

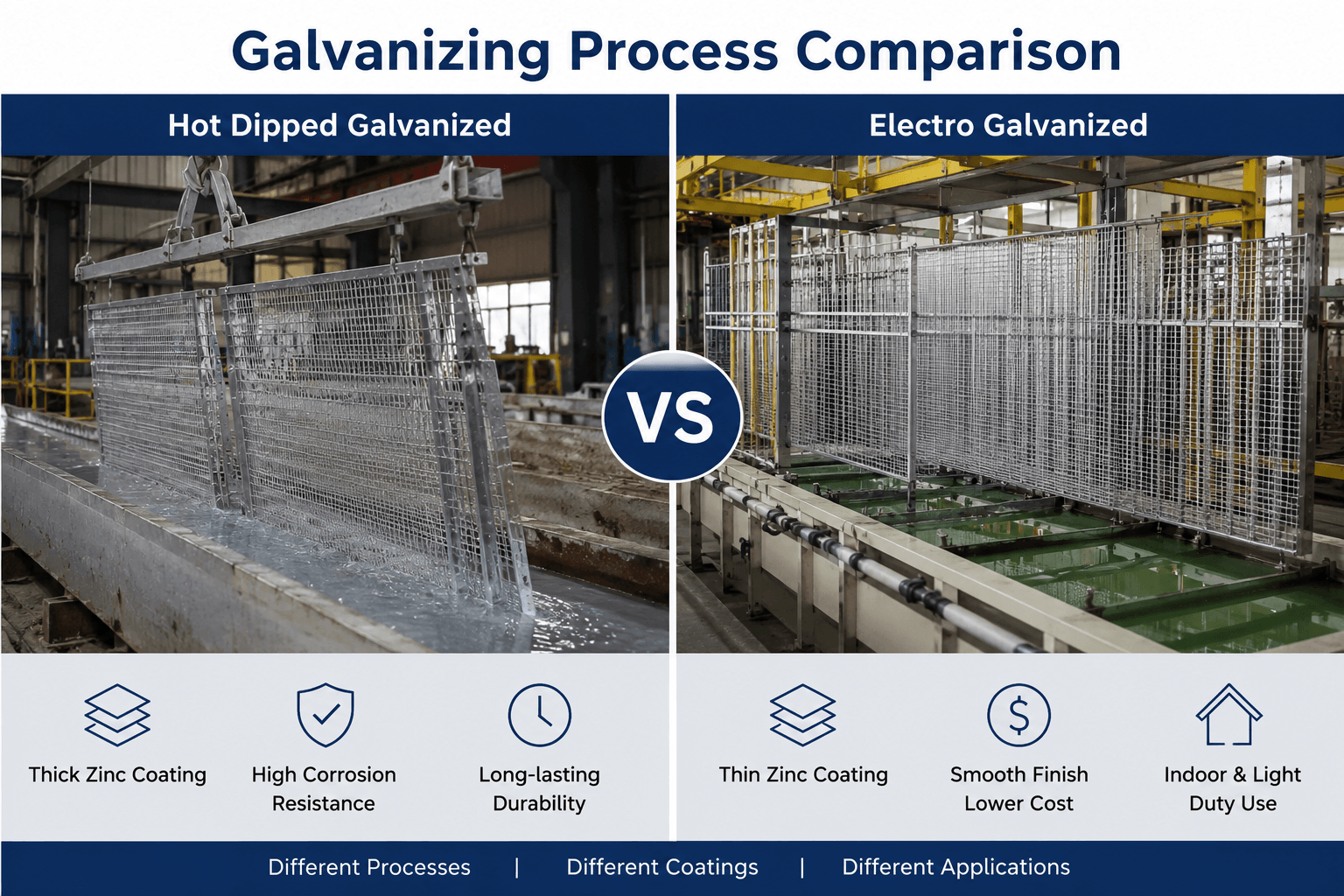

Galvanizing Process Comparison

Hot dipped galvanizing immerses the steel mesh in molten zinc at 840°F. This creates a thick, uneven coating that bonds metallurgically with the steel. The zinc layer ranges from 45-85 microns thick, providing excellent barrier protection and sacrificial corrosion resistance.

Electro galvanizing uses electrical current to deposit zinc in a controlled bath. This creates a thinner, more uniform coating of 5-25 microns. The process allows better control over coating thickness and appearance, but provides less total protection.

For galvanized mesh for agriculture, hot dipped coating handles weather exposure much better. The thicker zinc layer survives longer before breakthrough corrosion begins. However, electro galvanized mesh works fine for indoor applications or dry climates where corrosion risk is minimal.

The zinc coating acts sacrificially, corroding instead of the steel base. Thicker coatings simply take longer to consume, extending the mesh's functional life significantly.

Does PVC Coated Mesh Rust?

Understanding PVC coating limitations prevents costly surprises down the road. Even the best coatings have vulnerabilities under certain conditions.

PVC Coating Damage Examples

The PVC acts as a complete moisture barrier when undamaged. However, installation damage, animal scratching, or severe weather can create small openings. Once moisture reaches the steel core, rust begins developing underneath the coating.

I've seen this happen most often at cut ends where the PVC wasn't properly sealed. The exposed steel core starts rusting, and the corrosion spreads under the coating. This creates bulges and eventually coating failure around the damaged area.

Quality PVC coated mesh uses hot-dipped galvanized steel underneath. This provides backup protection if the coating gets damaged. The galvanized layer continues protecting the steel even after PVC damage occurs.

Regular inspection helps catch coating damage early. Small scratches can be repaired with PVC repair compounds, preventing rust development. However, extensive damage usually requires mesh replacement in that section.

Is Galvanized Mesh Cheaper Than PVC Coated Mesh?

Initial cost often drives material selection, but total project cost includes replacement and maintenance expenses over time.

Mesh Cost Analysis Over Time

Standard galvanized hexagonal mesh typically costs $0.80-1.20 per square foot, while PVC coated versions range from $1.20-1.80 per square foot. The price difference varies based on coating thickness and mesh gauge.

The math changes when you factor in replacement costs. If galvanized mesh lasts 5 years and PVC coated lasts 15 years, the PVC option becomes more economical despite higher upfront cost. Labor costs for replacement often exceed material costs in many applications.

PVC coated wire mesh price has decreased significantly as manufacturing volumes increased. The cost premium continues shrinking, making PVC coating more attractive for long-term projects.

For temporary installations under 3 years, galvanized mesh makes financial sense. For permanent installations in challenging environments, PVC coating typically provides better total cost of ownership.

Which Mesh Needs Less Maintenance?

Maintenance requirements directly impact long-term project costs and success. Different coatings require different care levels to maintain performance.

Mesh Maintenance Requirements

Galvanized mesh maintenance involves monitoring for rust development and applying protective coatings when needed. In coastal or industrial environments, this might require annual attention. Rust spots need wire brushing and zinc-rich paint application to prevent spread.

PVC coated mesh maintenance consists mainly of washing with soap and water to remove dirt buildup. The smooth plastic surface resists staining and doesn't require painting. Minor coating scratches can be touched up with matching PVC paint, but this is rarely necessary.

The reduced maintenance makes PVC coated mesh particularly attractive for remote installations or large-scale projects where access is difficult. Labor savings often justify the higher initial cost, especially when you factor in equipment and safety requirements for maintenance work.

Corrosion resistant hexagonal wire mesh with PVC coating essentially eliminates the biggest maintenance headache with outdoor mesh installations. This reliability makes project planning much more predictable.

Can Galvanized Mesh Be Used Outdoors?

Environmental suitability determines whether galvanized mesh will meet your project requirements and timeline expectations.

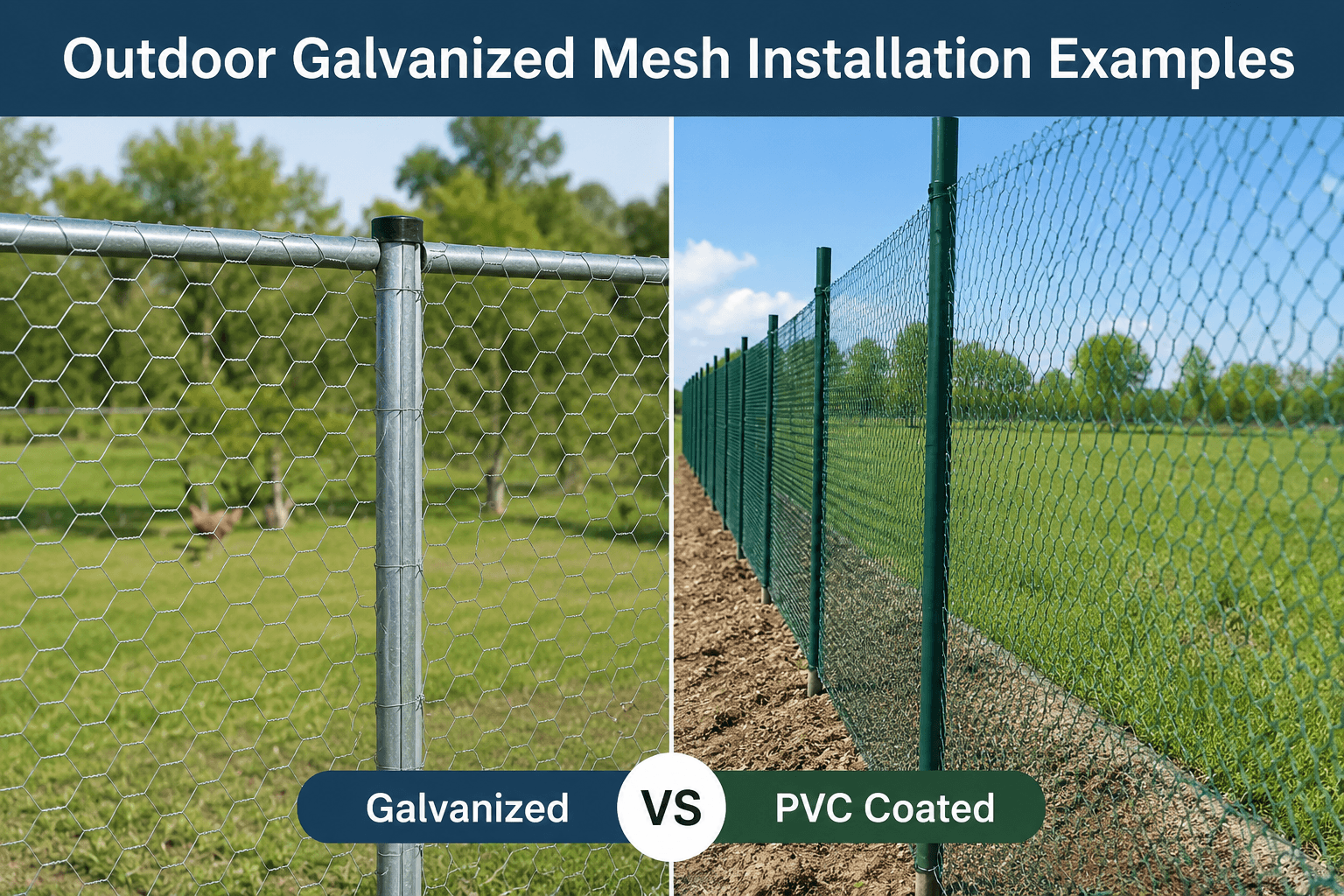

Outdoor Galvanized Mesh Installation Examples

Hot-dipped galvanized mesh performs better outdoors than electro galvanized versions. The thicker zinc coating provides longer protection against moisture and atmospheric corrosion. I've seen properly installed hot-dipped mesh last 20+ years in desert climates with minimal humidity.

Outdoor chicken wire fencing using galvanized mesh requires proper installation techniques to maximize lifespan. Adequate drainage prevents water pooling around posts. Proper tensioning reduces stress points where corrosion often begins. Regular inspection allows early intervention when rust spots appear.

Climate plays the biggest role in galvanized mesh performance. Dry, inland areas with low humidity provide ideal conditions. Coastal areas, industrial zones with chemical exposure, or regions with frequent rain and high humidity significantly reduce expected lifespan.

For agricultural applications in moderate climates, galvanized mesh often provides acceptable performance at lower cost. However, critical applications or harsh environments justify the upgrade to PVC coated alternatives.

Conclusion

PVC coated mesh wins for longevity and harsh environments, while galvanized mesh offers cost-effective protection in favorable conditions. Choose based on your specific exposure risks and budget priorities.
