What Is Welded Wire Mesh? A Complete Guide to Types, Sizes & Applications
Are you struggling to find the right wire mesh for your construction project? You're not alone. Many contractors, distributors, importers, and project buyers face the same challenge when comparing wire diameters, mesh openings, coatings, materials, and application requirements.

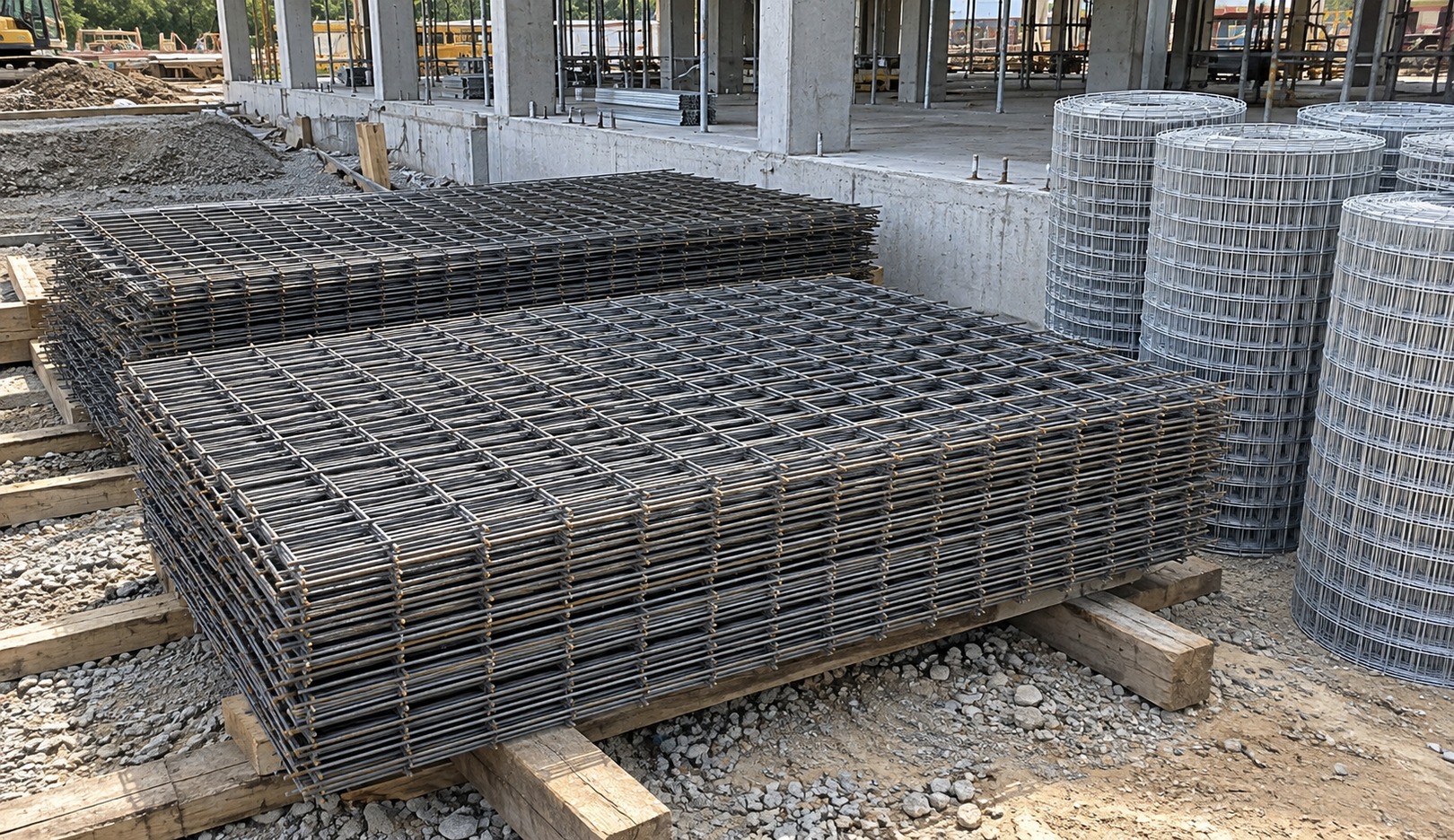

Welded wire mesh is a grid of steel wires permanently joined at their intersections through electric resistance welding. It is widely used for concrete reinforcement, fencing, construction, agriculture, and industrial applications because of its strength, rigidity, durability, and consistent grid dimensions.
At Dingzhou Bestar, we work with customers from different markets to select welded mesh specifications for construction, fencing, agriculture, and industrial projects. This guide explains the main materials, sizes, applications, and purchasing factors you should understand before placing an order.
What Is Welded Wire Mesh?
One of the first things buyers should understand is the difference between welded wire mesh and woven wire mesh. Although both products use metal wires arranged in a grid, their manufacturing processes and structural characteristics are different.
Welded wire mesh consists of longitudinal and transverse wires positioned at right angles and welded together at each intersection. Compared with woven mesh, welded mesh generally provides greater rigidity and more stable opening dimensions.
How Is Welded Wire Mesh Manufactured?
During production, longitudinal and transverse wires are positioned according to the required mesh spacing. Electric resistance welding equipment applies pressure and current at every wire intersection to create permanent welded joints.
This manufacturing method produces a rigid and dimensionally stable grid. Unlike woven wire mesh, the individual wires are fixed at each intersection and are less likely to shift under normal handling or installation conditions.
Common Welded Wire Mesh Gauges
| Wire Gauge | Approx. Diameter | Typical Applications |
|---|---|---|
| 6 Gauge | 4.88 mm | Heavy-duty construction and industrial applications |
| 8 Gauge | 4.06 mm | Concrete reinforcement and heavy fencing |
| 10 Gauge | 3.25 mm | General fencing and construction |
| 12 Gauge | 2.64 mm | Light construction and fencing |
Buyer Note: Wire gauge systems can vary between markets. For international purchasing, confirm the actual wire diameter in millimeters or inches rather than relying only on a gauge number.
Types of Welded Wire Mesh Materials
Choosing the correct material is one of the most important purchasing decisions. Material selection directly affects strength, corrosion resistance, expected service life, appearance, and total project cost.
1. Carbon Steel Welded Wire Mesh
Carbon steel provides good mechanical strength at a competitive material cost. It is commonly used for indoor applications, temporary installations, fabrication, or projects where another protective treatment will be added later.
Untreated carbon steel is susceptible to corrosion when exposed to moisture or outdoor environments, so additional surface protection may be necessary.
2. Galvanized Welded Wire Mesh
Galvanized welded wire mesh uses a zinc coating to protect the underlying steel from corrosion. Depending on the production process, galvanizing may be applied before or after welding.
Hot-dip galvanized mesh is widely used for outdoor fencing, construction, agriculture, animal enclosures, and other environments where improved corrosion resistance is required.
3. Stainless Steel Welded Wire Mesh
Stainless steel welded mesh provides excellent corrosion resistance without requiring a separate protective coating.
- 304 stainless steel: suitable for many general industrial applications.
- 316 stainless steel: often selected for coastal, marine, or chloride-containing environments.
4. PVC-Coated Welded Wire Mesh
PVC-coated welded mesh combines a steel wire structure with a protective polymer coating. This coating improves corrosion resistance and provides additional color options.
Green and black are commonly used for garden fencing, residential boundaries, landscaping, and animal enclosures.
5. Aluminum Welded Mesh
Aluminum offers low weight and natural corrosion resistance. However, its mechanical characteristics differ from steel, so it is generally more suitable for lightweight, decorative, ventilation, and screening applications than structural reinforcement.
Common Welded Mesh Sizes and Specifications
Selecting the correct opening size and wire diameter affects product strength, weight, steel consumption, installation efficiency, and total purchasing cost.
Smaller openings generally provide better containment and screening, while larger openings can reduce material usage and improve airflow, drainage, and visibility.
Typical Mesh Opening Sizes
- 1/4 × 1/4 inch
- 1/2 × 1/2 inch
- 1 × 1 inch
- 1 × 2 inch
- 2 × 2 inch
- 2 × 4 inch
- 4 × 4 inch
- 6 × 6 inch
Square and rectangular mesh openings are both available. The correct specification depends on the required function, wire diameter, manufacturing capability, and applicable engineering requirements.
Welded Wire Mesh Panel Sizes
Common sheet and panel dimensions include 4 × 8 ft and 5 × 10 ft, although customized widths, lengths, and roll dimensions can also be manufactured for wholesale and project orders.
Concrete Reinforcement Mesh
Welded mesh used for concrete applications may use openings such as 6 × 6 inches or smaller depending on structural design requirements. Wire diameter and spacing should always follow project drawings and applicable standards.
Security Fencing
Security fencing often uses smaller rectangular openings to improve rigidity and make climbing or penetration more difficult. Heavier wire diameters may also be selected where greater physical resistance is required.
Garden and Residential Fencing
Garden and residential fencing generally uses lighter wire than heavy industrial mesh. Opening size should be selected according to the animals, plants, or property areas that need protection.
Main Applications of Welded Wire Mesh
Welded wire mesh is used across construction, agriculture, infrastructure, industrial manufacturing, security, and residential markets because of its stable grid structure and flexible specification options.

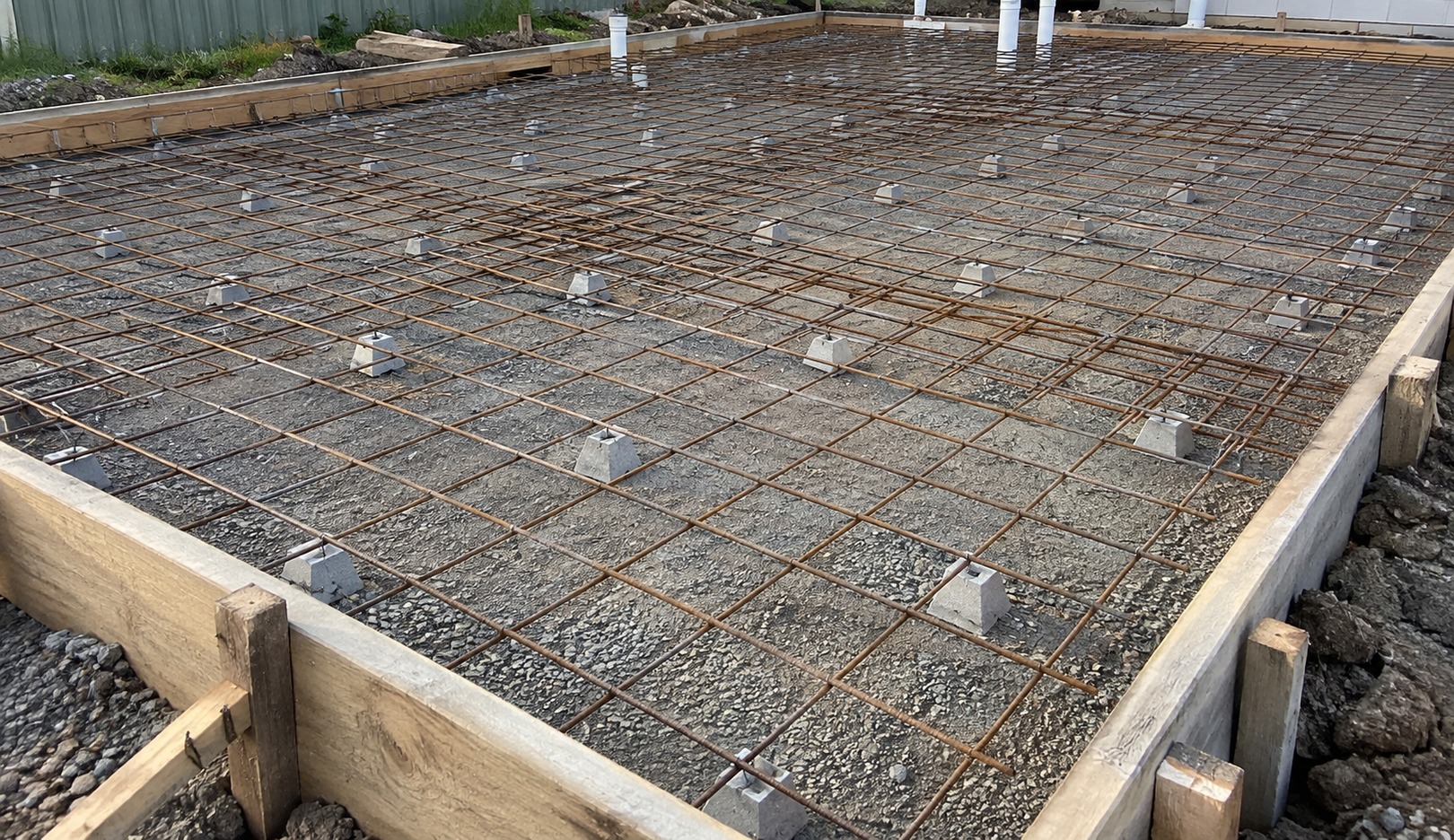

Concrete Reinforcement
Welded wire reinforcement can be used in concrete slabs and other engineered concrete applications to provide distributed reinforcement. Steel area, mesh position, concrete cover, and installation methods should follow structural design requirements.
Security Fencing
Welded mesh fencing creates a rigid barrier while maintaining visibility. It is widely used around industrial facilities, warehouses, infrastructure projects, and commercial properties.
Animal Enclosures
Welded mesh is used for poultry cages, rabbit enclosures, livestock fencing, kennels, and aviaries. Opening size should be matched to animal size, while wire diameter should be sufficient for the expected mechanical load.
Industrial Screening
Industrial applications include machine guards, baskets, protective partitions, ventilation screens, material separation, and other fabricated mesh products.
Agricultural Applications
Agricultural welded mesh applications include crop protection, livestock management, tree guards, greenhouse benches, storage cages, compost containers, and farm fencing.
Welded Wire Mesh vs. Woven Wire Mesh
| Feature | Welded Wire Mesh | Woven Wire Mesh |
|---|---|---|
| Construction | Wires welded at intersections | Wires woven over and under each other |
| Rigidity | Generally more rigid | Generally more flexible |
| Opening Stability | Maintains consistent grid dimensions | Openings may move depending on weave and load |
| Typical Applications | Fencing, reinforcement, cages, guards | Screening, filtration, sieving |
| Customization | Wire diameter, spacing, coating, panel dimensions | Wire diameter, weave pattern, mesh count, material |
Neither product is universally better. The correct choice depends on whether the application prioritizes rigidity, flexibility, filtration accuracy, structural performance, or another functional requirement.
How to Choose Welded Wire Mesh
Professional buyers should evaluate more than the price per roll or panel. Correct specification helps reduce installation problems, material waste, premature replacement, and procurement risk.
1. Determine the Application
Identify whether the mesh will be used for concrete reinforcement, fencing, animal containment, industrial screening, machine protection, agriculture, or another purpose.
2. Select the Wire Diameter
Wire diameter influences strength, rigidity, weight, and cost. Heavy-duty construction or security applications generally require thicker wires than garden or light screening applications.
3. Choose the Mesh Opening
Mesh opening affects containment, visibility, ventilation, drainage, and material consumption. Select an opening that meets the functional and safety requirements of the application.
4. Evaluate the Operating Environment
Indoor, outdoor, coastal, humid, chemical, and agricultural environments require different levels of corrosion protection.
5. Confirm Panel or Roll Dimensions
Correct dimensions can reduce cutting, installation labor, overlaps, transportation costs, and material waste.
6. Check Applicable Standards
For structural or regulated applications, confirm that the product specification complies with project drawings and applicable national or international standards.
Welded Wire Mesh Buying Guide
When sourcing welded wire mesh from a manufacturer, buyers should evaluate manufacturing quality, dimensions, coating, documentation, packaging, and supply capability in addition to unit price.
Check Weld Quality
Welding should be consistent throughout the mesh. Weak, missing, broken, or severely burned intersections can affect product performance and create installation problems.
Verify Wire Diameter
Wire diameter should be measured and compared with the agreed specification and tolerance.
Measure Mesh Openings
Opening dimensions should be checked at multiple positions across the panel or roll to confirm manufacturing consistency.
Inspect the Surface Finish
Galvanized mesh should have suitable zinc coverage. PVC-coated mesh should have good coating adhesion, while stainless steel mesh should match the specified grade and finish.
Review Packaging
Export packaging should protect the mesh during storage, loading, sea freight, unloading, and local transportation.
Request Quality Documentation
Depending on the project, buyers may request material certificates, dimensional inspection reports, mechanical test data, coating information, or other quality documentation.
What Information Should You Provide When Requesting a Quote?
Providing complete specifications helps manufacturers calculate pricing accurately and reduces unnecessary back-and-forth communication.
For customized industrial or construction projects, technical drawings can also help manufacturers confirm production feasibility and prepare a more accurate quotation.
Why Source Welded Wire Mesh from Dingzhou Bestar?
Dingzhou Bestar supplies welded wire mesh for construction, fencing, agricultural, industrial, and wholesale applications. Our team works with customers to match wire diameter, opening size, material, coating, dimensions, and packaging with project requirements.
With manufacturing resources in China and Ethiopia, we can support customers requiring flexible sourcing and regional supply solutions.
Frequently Asked Questions
What is welded wire mesh used for?
Welded wire mesh is commonly used for construction reinforcement, security fencing, agricultural fencing, cages, partitions, machine guards, industrial screens, and fabricated wire products.
Is galvanized welded wire mesh suitable for outdoor use?
Yes. Galvanized welded wire mesh is widely used outdoors because the zinc coating helps protect the underlying steel from corrosion.
What is the difference between welded mesh and woven mesh?
Welded mesh uses wires permanently joined at their intersections, producing a relatively rigid structure. Woven mesh uses interlaced wires and is generally more flexible.
What size welded wire mesh do I need?
The correct size depends on the application, required strength, containment requirements, environmental conditions, and applicable engineering standards.
Can welded wire mesh be customized?
Yes. Wire diameter, mesh opening, panel dimensions, roll sizes, coatings, materials, and packaging can often be customized according to production feasibility and order quantity.
Conclusion
Welded wire mesh is a versatile metal mesh product used throughout construction, fencing, agriculture, security, and industrial manufacturing. Its performance depends on selecting the correct combination of wire diameter, mesh opening, material, surface treatment, and dimensions.
For B2B buyers, purchasing decisions should consider not only price but also weld consistency, dimensional tolerance, corrosion protection, documentation, packaging, and supplier manufacturing capability.
